Quickstart¶

This notebook walks through the basics of computing equilibrium concentrations with equiconc.

import equiconc
import matplotlib.pyplot as plt

Simple dimerization¶

Consider two strands A and B at 100 nM each that can form a heterodimer AB with \(\Delta G^\circ = -10\) kcal/mol at 25 °C.

eq = (
    equiconc.System()
    .monomer("A", 100e-9)
    .monomer("B", 100e-9)
    .complex("AB", [("A", 1), ("B", 1)], dg_st=-10.0)
    .equilibrium()
)

for name, conc in eq.items():
    print(f"{name:>3s}: {conc:.3e} M")

  A: 4.889e-08 M
  B: 4.889e-08 M
 AB: 5.111e-08 M

Exploring the result¶

The Equilibrium object supports dict-like access, iteration, and several convenience properties.

# Bracket access
print(f"[AB] = {eq['AB']:.3e} M")

# Membership test
print(f"'AB' in eq: {'AB' in eq}")
print(f"'XY' in eq: {'XY' in eq}")

# Named lookup
print(f"eq.concentration('AB') = {eq.concentration('AB'):.3e}")

[AB] = 5.111e-08 M
'AB' in eq: True
'XY' in eq: False
eq.concentration('AB') = 5.111e-08

# Properties
print("Monomer names:", eq.monomer_names)
print("Complex names:", eq.complex_names)
print("Converged fully:", eq.converged_fully)

Monomer names: ['A', 'B']
Complex names: ['AB']
Converged fully: True

Mass conservation check¶

The total concentration of each monomer is conserved: \([\text{A}]_\text{free} + [\text{AB}] = [\text{A}]_\text{total}\).

total_A = eq["A"] + eq["AB"]
print(f"Total [A] = {total_A:.3e} M  (expected 1.000e-07 M)")

total_B = eq["B"] + eq["AB"]
print(f"Total [B] = {total_B:.3e} M  (expected 1.000e-07 M)")

Total [A] = 1.000e-07 M  (expected 1.000e-07 M)
Total [B] = 1.000e-07 M  (expected 1.000e-07 M)

Multi-complex system¶

Now consider a system where strand A can bind B or C, forming heterodimers AB and AC with different affinities.

eq2 = (
    equiconc.System()
    .monomer("A", 1e-6)
    .monomer("B", 1e-6)
    .monomer("C", 1e-6)
    .complex("AB", [("A", 1), ("B", 1)], dg_st=-12.0)
    .complex("AC", [("A", 1), ("C", 1)], dg_st=-8.0)
    .equilibrium()
)

for name, conc in eq2.items():
    print(f"{name:>3s}: {conc:.3e} M")

  A: 2.974e-08 M
  B: 5.103e-08 M
  C: 9.787e-07 M
 AB: 9.490e-07 M
 AC: 2.129e-08 M

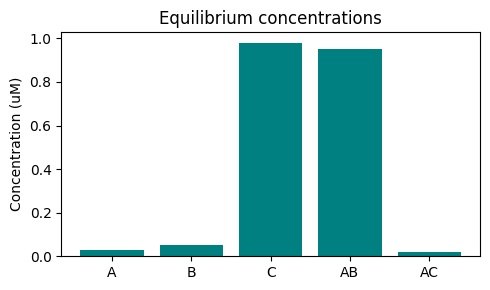

Visualizing concentrations¶

A simple bar chart of the equilibrium concentrations.

d = eq2.to_dict()

fig, ax = plt.subplots(figsize=(5, 3))
ax.bar(d.keys(), [v * 1e6 for v in d.values()], color="teal")
ax.set_ylabel("Concentration (uM)")
ax.set_title("Equilibrium concentrations")
fig.tight_layout()
plt.show()

png
